EcoCwave——水性零件清洗的全能专家

EcoCwave 是一款强大的喷洒注水清洗系统，配备真空密封工作舱。用户可选择配备两步或三步独立清洗。采用专为精细清洗开发的直立圆柱形注水罐，确保流体管理优化、高度灵活性和工艺质量提升。

提供两种不同工作室尺寸选择，使您能够定制个性化批次。因此，单位产品成本大幅降低。为您的 EcoCwave 机器，Ecoclean 提供多种选项，可根据您的需求单独选择。

用户可享受以下福利：

• 由于其两罐/三罐配置能力，适用于多种应用：湿式化学部件清洗和表面处理

• 创新设备技术要求zui低楼面空间：仅5.5平方米（双水箱系统）

• 单件产品成本降低：通过批量优化批量生产节省高达30%

• 优化流体管理：直立圆柱形注水罐，优于矩形罐，防止污垢截留，配备全流量过滤和清洗液处理

• 100%干燥：通过热空气和真空干燥相结合实现

• 选项种类繁多：基础方案、精细清洁、设备监控、液体处理、自动化解决方案

• 用户友好操作：先进的HMI操作面板，实时监控所有系统状态、故障诊断和服务间隔通知

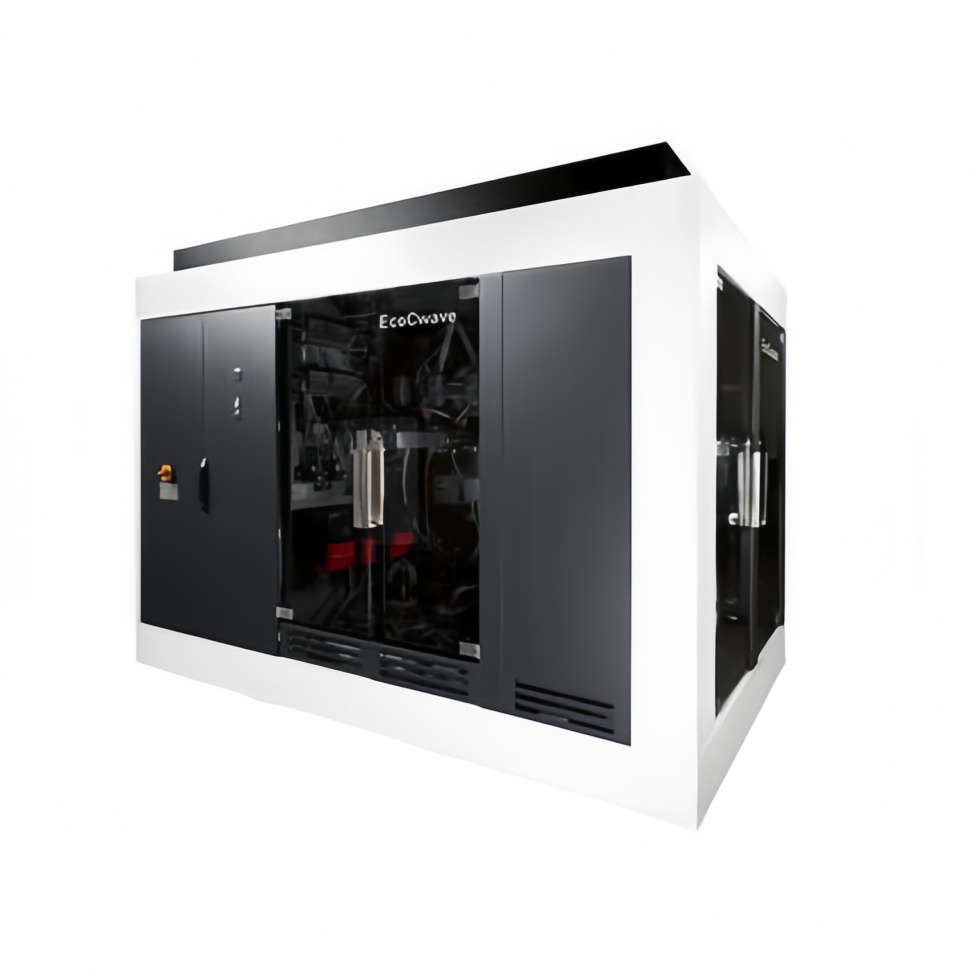

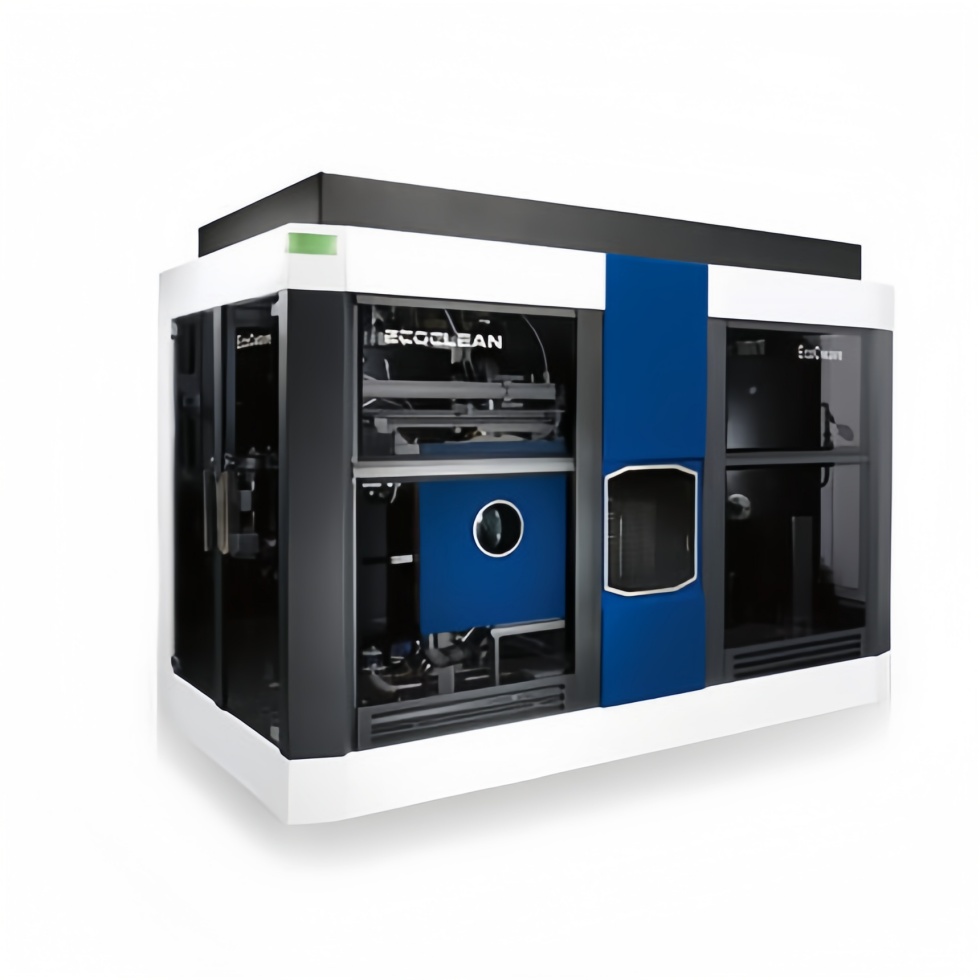

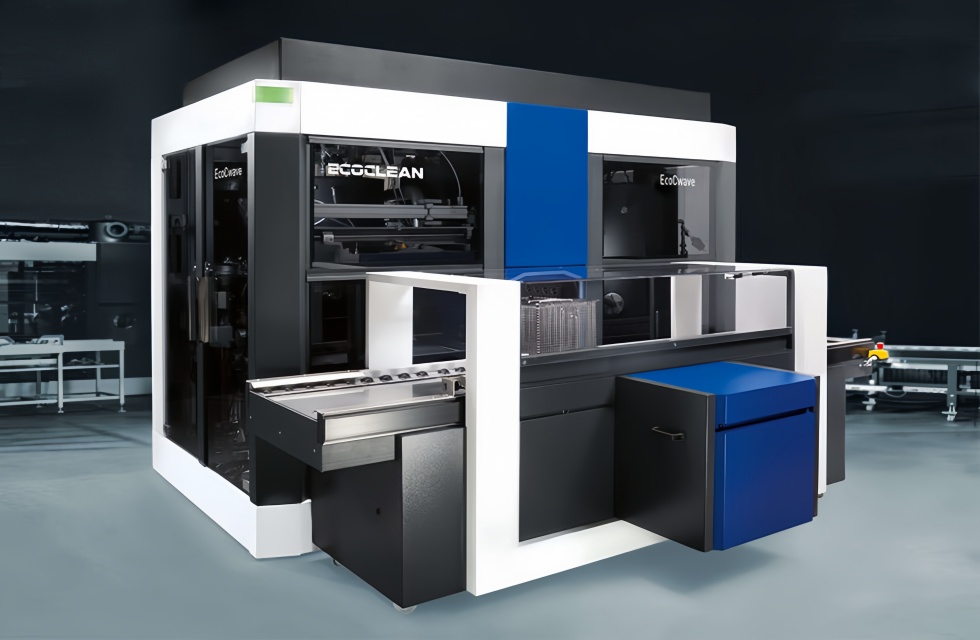

EcoCwave – The all-round talent for aqueous parts cleaning

The EcoCwave is a powerful spray flood cleaning system with a vacuum-tight work chamber. At the user’s option, it can be equipped for either two or three independent cleaning steps. The use of upright cylindrical flood tanks,which have been developed for fine cleaning applications, ensure an optimized fluid management, a high flexibility and improved process quality.

Offering a choice of two different work chamber sizes, the system enables you to make-up your individual specific batches. Therefore per-unit product costs are minimized. For your EcoCwave machine, Ecoclean offers an extensive range of options which are individually selectable to suit your requirements.

User benefits from:

Universal versatility for diverse applications: in wet chemical part cleaning and surface treatment due to its two-/three-tank configuration capability

Innovative equipment technology requiring minimum floorspace: only 5.5 m² (two-tank system)

Reduced per-unit product costs: up to 30 % savings through volumetrically optimized batch make-up

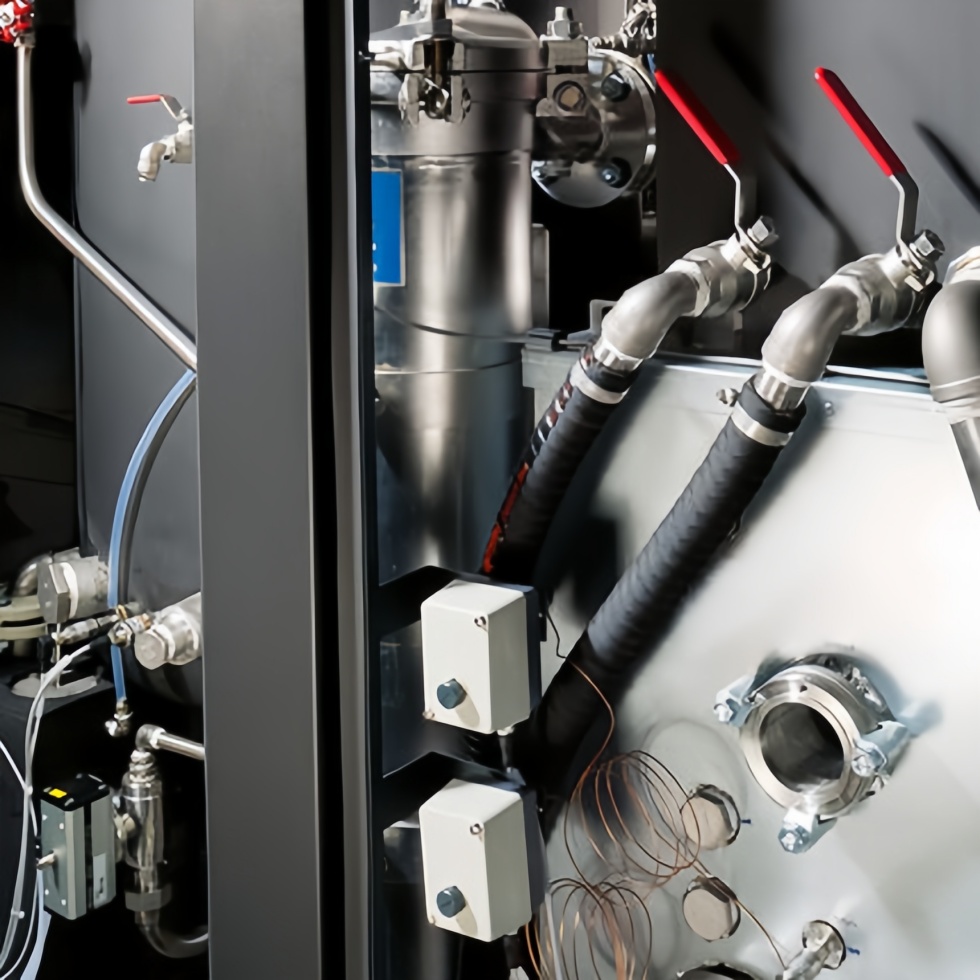

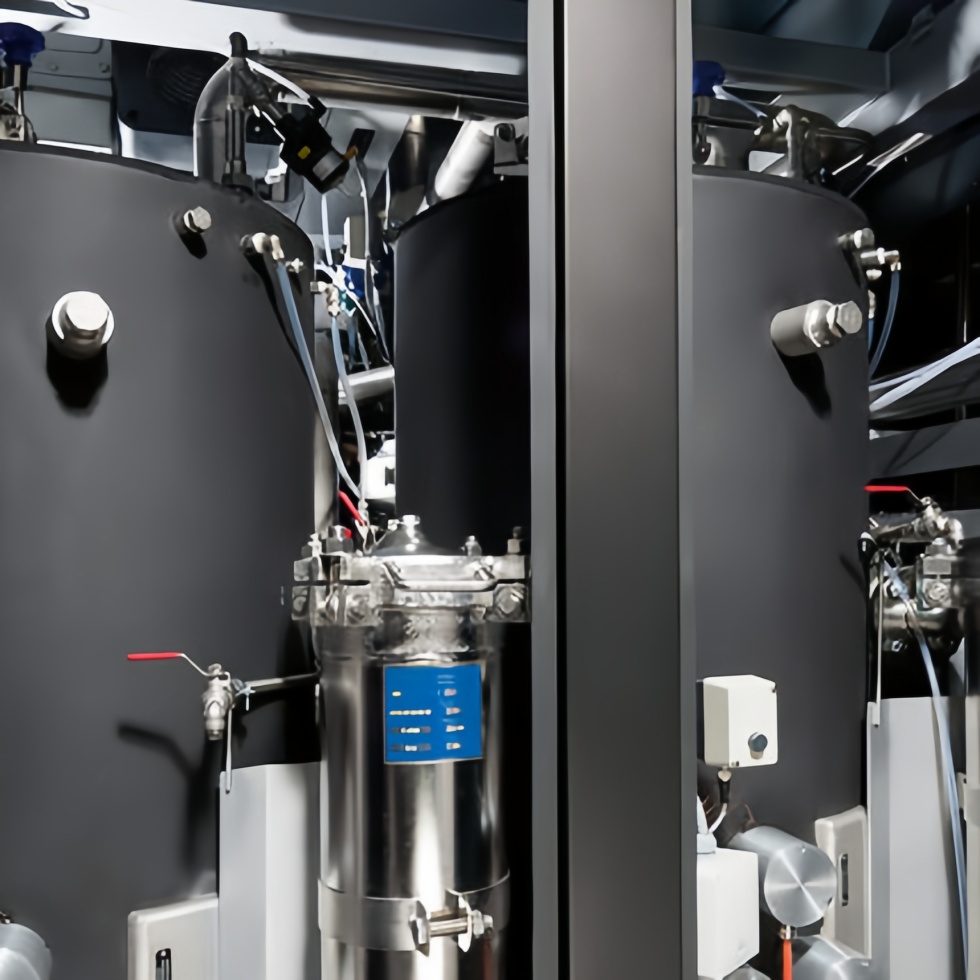

Optimized fluid management: upright cylindrical flood tanks, superior to rectangular tanks in preventing the formation of dirt traps, are backed by full-flow filtration and cleaning fluid treatment

100 % drying: achieved through a combination of hot-air and vacuum drying

An extensive range of options: basic options, fine cleaning, equipment monitoring, fluid treatment, automation solutions

User-friendly operation: advanced HMI operator panel for real-time monitoring of all system states, fault diagnostics and service intervals notification
