高压水射流去毛刺
结合低压清洗工艺
可靠的工艺和重复去毛刺后清洗的零件对于粘接、密封和装配等后续工艺的质量以及完善的产品功能至关重要。
通过全新的系统概念EcoCvelox，Ecoclean提供提供了一种高度灵活的模块化解决方案，可在单一工序中实现经济高效的高压水射流去毛刺和清洗。该设备可根据加工过程进行配置和扩展，并集成了线性传输系统，在所谓的单件流中，可加工尺寸zui大为 200 x 200 x 200 mm的工件，每个托盘的加工时间仅为 15 秒。

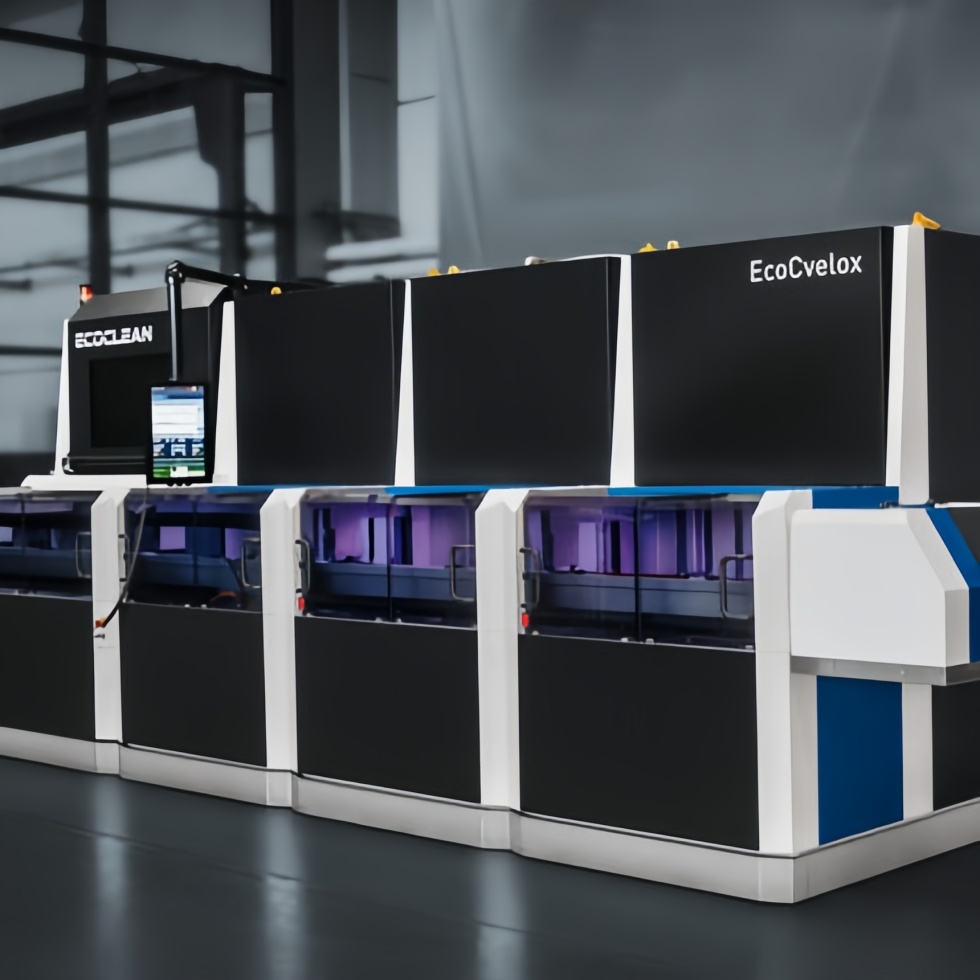

EcoCvelox - 结合高压水射流去毛刺和工业部件清洗的全能型设备
通过集成的 CAD/CAM 界面，可以对高压去毛刺工艺进行快速、简便的编程 —— 无论是使用单个主轴，还是使用带有zui多五个刀具的高压转塔。结合创新的工件处理系统，可确保在短时间内完成新工件的工艺操作。
零件的清洗和干燥可通过浸没射流、喷淋、控制漂洗和超声波以及热风干燥和真空干燥等方式进行。该系统可通过机器人或人工手动上下料 。
通过EcoCvelox，Ecoclean提供创新的系统概念，用于高效的高压水射流去毛刺和组件清洗：
高压水射流去毛刺与不同的低压清洗工艺相结合
紧凑的系统概念，集成高动态线性传输系统
可单独配置，也可根据工艺进行扩展模块
用于加工zui大200 x 200 x 200 mm的工件
每个托盘的循环时间仅为15秒

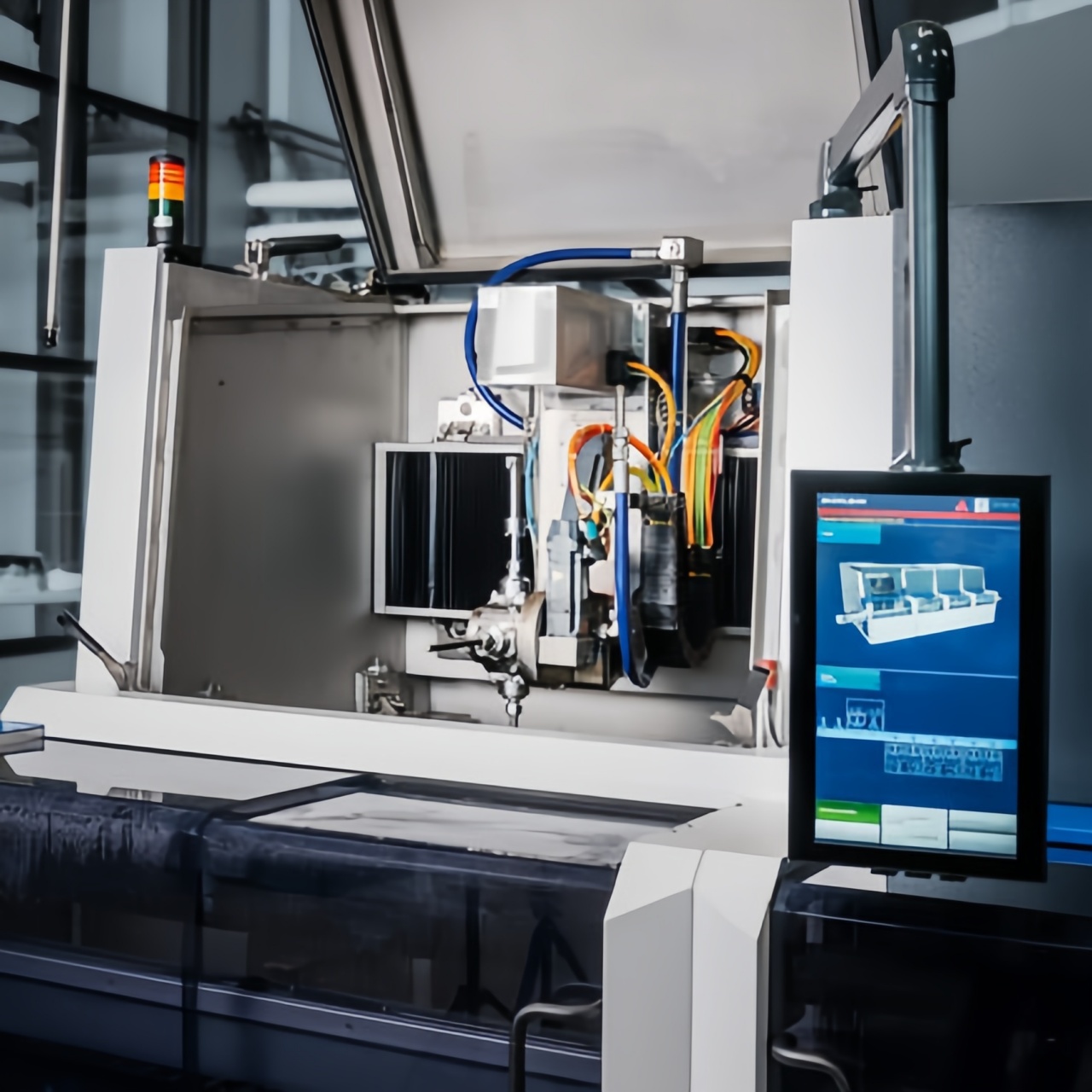

高压水射流去毛刺，单轴或高压刀塔，最多五种不同的刀具

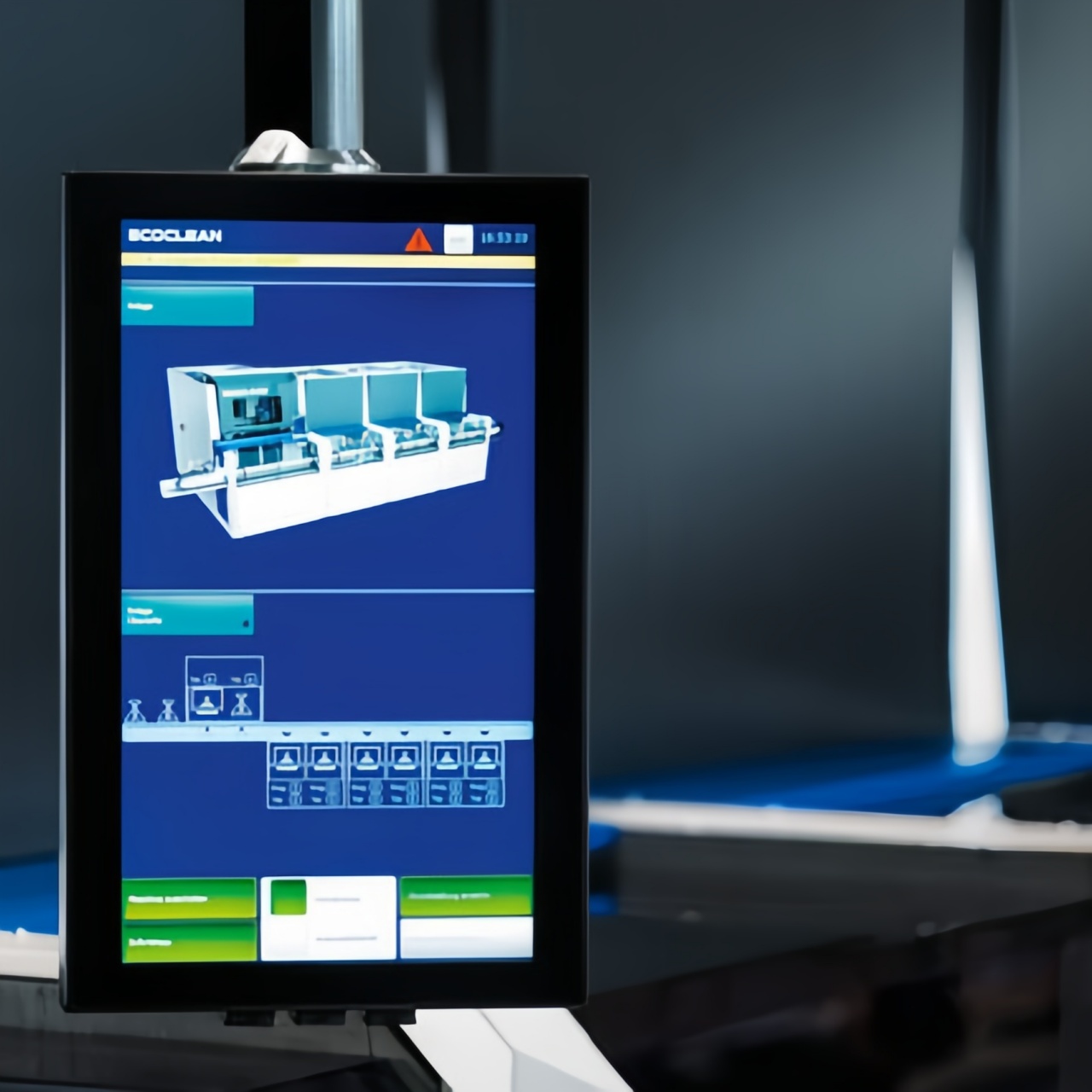

可集成CAD/CAM界面，以便对去毛刺模块进行简单快速的编程

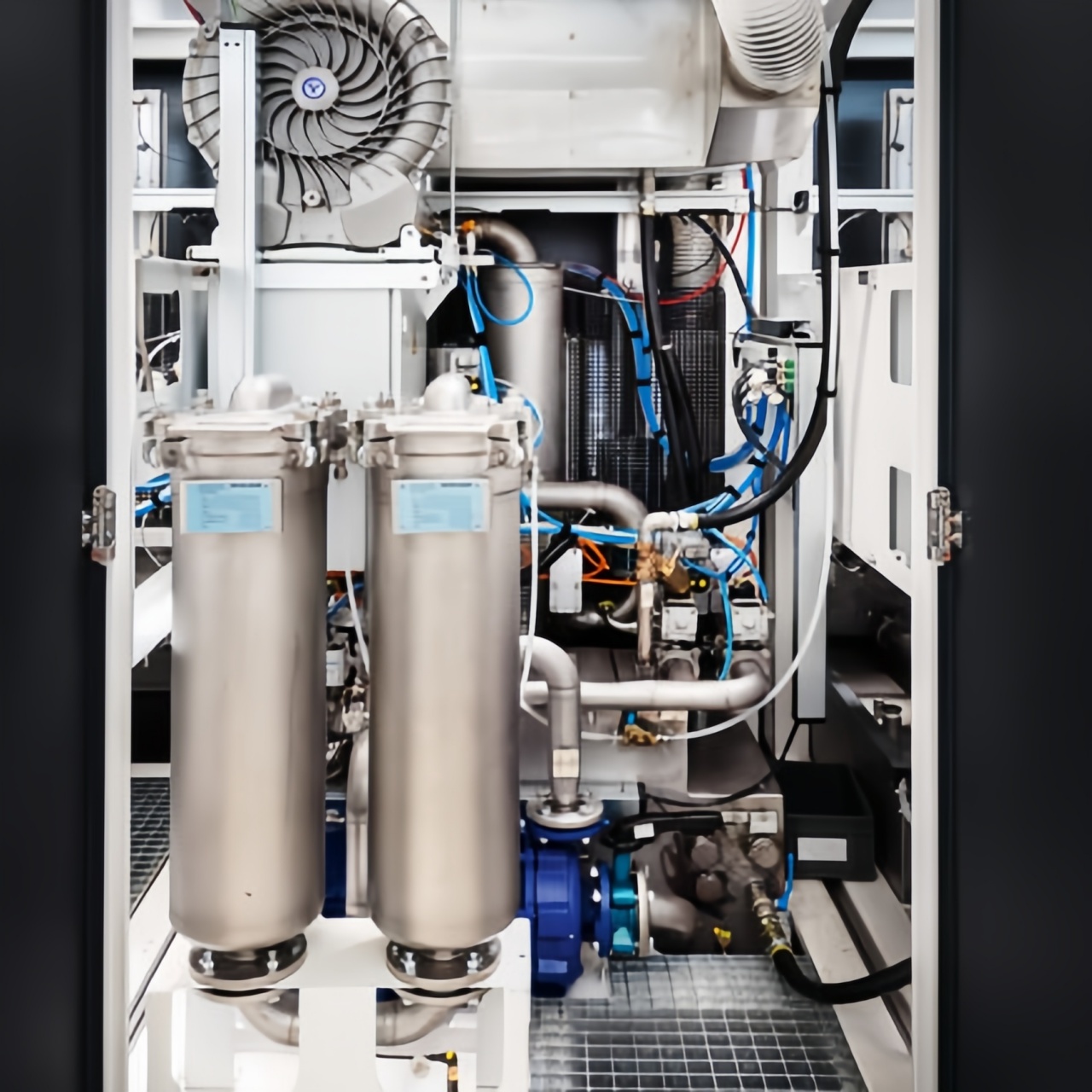

通过浸没射流，喷淋，定位冲洗和超声波进行部件清洗
通过热风干燥和/或真空干燥进行工件干燥
系统可以使用龙门或机器人以及手动上下料
可选择单侧或双侧的装载和卸载
High-Pressure Water-Jet Deburring
Combined with low-pressure processes for cleaning
Process-reliably and reproducibly deburred and cleaned parts are crucial for the quality of subsequent processes such as bonding, sealing and assembly as well as for perfect product function.
With the completely new system concept EcoCvelox, Ecoclean offers a highly flexible, modular solution for cost-efficient high-pressure waterj-et deburring and cleaning in a single procedure. The process-dependent configurable and expandable machine with integrated linear transport system enables processing of parts with dimensions up to 200 x 200 x 200 mm cycle times of only 15 seconds per palette in the so-called one-piece flow.
EcoCvelox - The all-rounder for combined high-pressure water-jet deburring with industrial component cleaning
An integrated CAD/CAM interface allows for quick and easy programming of the high-pressure deburring process – either with a single spindle or a high-pressure turret with up to five tools. In combination with an innovative system for parts handling, it ensures that process operations for new workpieces can be implemented in the shortest possible time.
Component cleaning and drying can be carried out by means of injection flood washing, spraying, controlled rinsing and ultrasound, as well as high-speed blowing and vacuum drying. The system can be loaded automatically with a robot or portal system as well as manually.
