UCMPerformanceLine——为高需求打造的模块化超声波清洗系统

UCMPerformanceLine是一款多级超声波系列浸没系统，以其模块化设计令人印象深刻。它符合医疗技术、光学和精密零件清洗等应用的zui高质量标准。

典型应用包括骨科植入物的zui终清洁和钝化（包括2.1证书——OQ、IQ和PQ）、高真空技术中精密部件的清洁、各种光学器件的清洁，以及涂层前的部件清洁。

即使是高度复杂的3D打印部件，也可以通过可选的脉冲压力清洗（PPC）功能达到高标准清洗。

机器概念

• 清洁和冲洗模块中的货物移动，旋转和旋转运动为可选

• 可变超声设备，适用于单声道、双声和多频，频率范围从25 kHz到120 kHz，Mega声

• 热风、红外和真空干燥

• 溢流循环过滤

• 用于承载货运船和篮子的灵活运输系统

• 轻松制定治疗处方

• 通过IPC控制实现过程可视化和误差诊断

• 冲洗水/去离子水循环系统的连接

• 通过HEPA过滤器进行送风过滤

• 无尘室连接可能

• 封闭设计

• 广泛自动化

应用领域

• 薄膜涂层

• 精密光学

• 医疗技术

• 精密工程

特点与优势

• 清洁与冲洗工艺：模块化与多层次

• 多用途应用：单频、双频或多频超声、超声超声

• 灵活运输系统：用于优化吞吐量和轻度零件处理

• 节省空间设计：通过集成电气和控制技术实现每个模块

• 高品质系统住房：保护商品和用户免受污染和排放

• 高度适应性：对客户规格和流程

UCMPerformanceLine – The Modular Ultrasonic Cleaning System for the Highest Demands

The UCMPerformanceLine is a multi-stage ultrasonic series immersion system that impresses with its modular design. It meets the highest quality standards for applications

in medical technology, optics, and precision parts cleaning.

Typical applications include the final cleaning and passivation of orthopedic implants (including the 2.1 certificate – OQ, IQ, and PQ), the cleaning of precision components in

high-vacuum technology, the cleaning of all types of optical components, and the cleaning of components prior to coating.

Even highly complex 3D-printed components can be cleaned to a high standard with the optional Pulsated Pressure Cleaning (PPC) feature.

Machine concept

Movement of goods in cleaning and rinsing modules, rotating and spinning movements optional

Variable ultrasonic equipment for mono, twin, and multifrequency from 25 to 120 kHz, Mega sound

Hot air, infrared, and vacuum drying

Overflow circular filtration

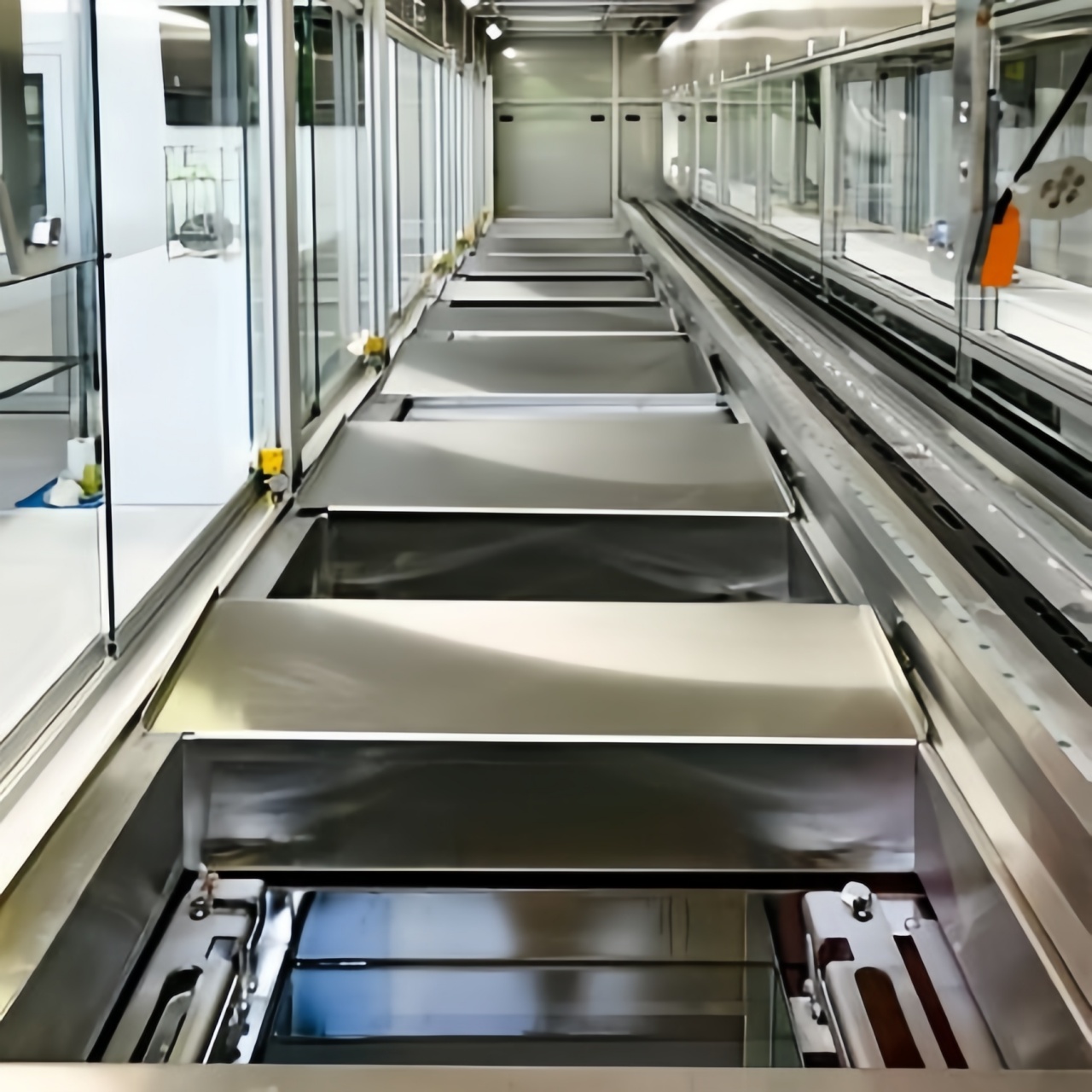

Flexible transport system for holding goods carriers and baskets

Easy creation of treatment prescriptions

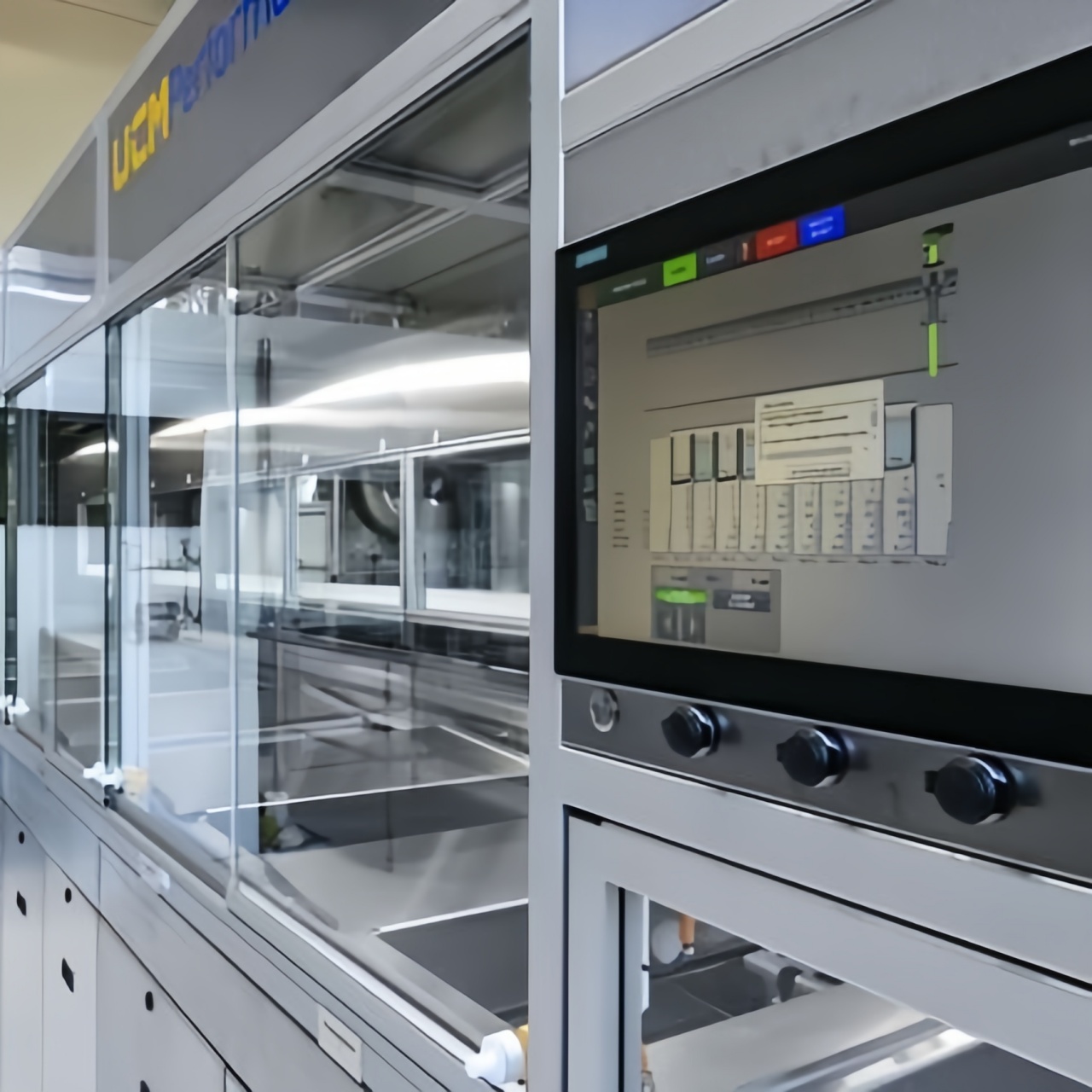

Process visualization and error diagnosis via IPC control

Connection of flushing water/deionized water circulation system

Supply air filtration through HEPA filters

Clean room connection possible

Closed design

Extensive automation

Fields of application

Thin-film coating

Precision optics

Medical technology

Precision engineering

Features and benefits

Cleaning and rinsing processes: modular and multi-level

Versatile application: of mono-, twin-, or multifrequency ultrasound, mega sound

Flexible transportation system: for throughput optimization and gentle parts handling

Space-saving design: through integrated electrical and control technology per module

High-quality system housing: protects goods and users from contamination and emissions

High adaptability: to customer specifications and processes
