Minio 85C/P – 体积zui小的溶剂垫圈
紧凑且占用空间zui小的方案。作为高效能清洁介质，非卤素烃类允许安全且经济地使用溶剂去除生产过程中或生产后产生的油脂、油脂和杂质。无论是生产能力较低的小型工厂还是拥有分散清洗站的大型工厂，都受益于Minio 85C清洁系统的先进工艺技术。
多种不同的程序变体，包括浸渍工艺、蒸汽脱脂和真空干燥，确保满足现代制造工艺在质量和功能性方面的理想条件。这个小型系统配备合适滤篮尺寸，始终配备双重过滤系统（洪水罐-工作舱和工作舱-洪水罐）。
设备与工艺
封闭工作室中的清洁与干燥过程
第二个注水池用于精细清洁
高功率注入泛水洗的循环过滤
前方手动工作室装填
工作舱的手动门锁
对罐内安全相关温度和压力进行多重监测
零件篮的旋转和旋转运动以支持清洁和干燥效果
真空蒸馏连续溶剂处理
西门子S7控制系统，用于工艺定制编程
控制面板上显示纯文本的错误诊断
通过热回收减少能量输入
水箱内的充足维护和清洁开口
带维护门的封闭设备外壳，确保zui佳进出
8个洗涤项目
可选附加内容
优点
用于碳氢化合物的复杂冗余安全设备
几乎无排放运行，环保工艺
由于风冷冷凝器实现的无水冷却运行
水冷可能
真空蒸馏以实现zui佳溶剂处理
双重过滤

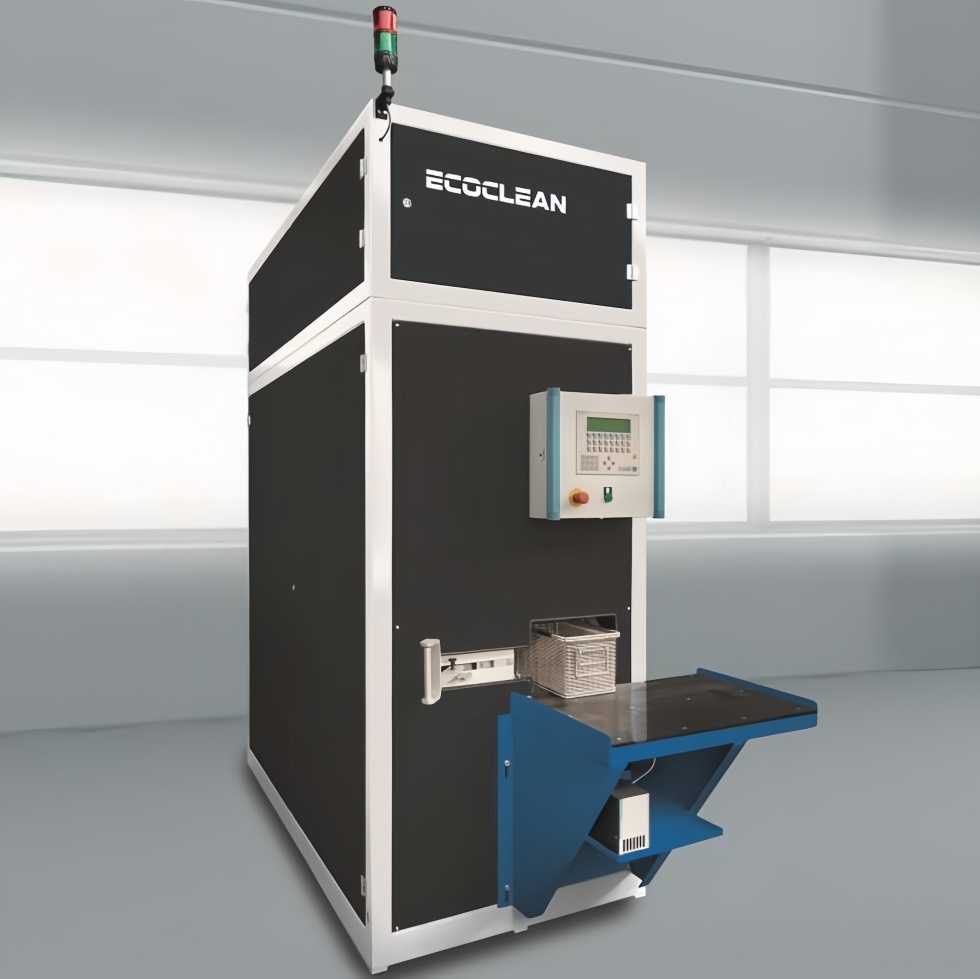

Minio 85C/P – The solvent washer for minimal space
The compact solution that takes up minimal space. Being highly powerful cleaning media non-halogenated hydro- carbons allow safe and economical use of solvents for
removing oil, grease and swarf between or after production processes. Both small facilities with comparatively low production capacities and large-scale plants with
decentralised cleaning stations benefit from the sophisticated process technology of the Minio 85C cleaning system.
Many different programme variants with immersion processes, vapour degreasing and vacuum drying ensure ideal conditions to meet the requirements expected of
modern manufacturing processes in terms of quality and functionality. This small system with an appropriate size of basket is always supplied with double filtration
(flood tank – work chamber and workchamber – flood tank).
Equipment and process
Cleaning and drying process in a closed work chamber
Second flood tank for fine cleaning
Circulation filtration with high-power injection flood washing
Manual work chamber loading at the front
Manual door lock on the work chamber
Multiple monitoring of safety-relevant temperatures and pressures in the tanks
Rotation and swivel movements of the parts baskets to support the cleaning and drying effect
Continuous solvent treatment by vacuum distillation
Siemens S7 control system for customised programming of the processes
Error diagnosis with plain text display on the control panel
Minimisation of energy input due to heat recovery
Amply sized maintenance and cleaning openings in the tanks
Closed equipment housing with maintenance doors for optimum access
8 washing programmes
Optional extras
Ultrasonics unit
Modem
Visualization
Advantages
Sophisticated, redundant safety equipment for the use hydrocarbons
Virtually emission-free operation, environmentally friendly process
Cooling water-free operation due to air-cooled condensers
Water cooling possible
Vacuum distillation for optimum solvent treatment
Double filtration
