EcoCbase S | EcoCbase M – 基础解决方案
EcoCbase系列为溶剂清洗提供了理想的入门选择——结构紧凑、经济实惠，适用于较小容量需求。
EcoCbase系列代表着采用非卤代烃和改性醇类实现高效经济的零件清洗。这些清洗介质能够高效可靠地清除油污、油脂、乳化剂和切屑。
该系列系统既适用于生产流程间清洗，也适用于生产后清洗，既能满足产能较低的小型企业需求，也适用于大型生产环境中的分散式清洗站。
EcoCbase系列是迈向经济高效溶剂清洗的理想起点——灵活、可持续且完全契合您的需求。
优势
久经考验的入门级解决方案：
受益于Ecoclean多年专业经验——包括适用于小批量及有限产量的紧凑型系统。
灵活适配：
广泛适用于从预清洗、中间清洗到zui终清洗的各类应用场景。
面向未来的系统设计：
兼容烃类溶剂与改性醇类溶剂。
紧凑安装尺寸：
精巧设计可适应低矮空间（EcoCbase S型号：高度>2米，宽度1.4米）。
功能配置：
脉冲压力清洗（PPC）、超声波增强及自动排油（EcoCbase S型号）等选项保障工艺可靠性与效率。
节能工艺设计：
新型热回收功能有效降低能耗与运营成本。
系统技术与工艺
单室全真空清洗系统，适用于含碳氢化合物及改性醇类成分的部件清洗
真空工艺实现清洗、蒸馏与干燥；通过内置真空技术完成充填/排空
容器内安全相关温度与压力的多重监测
双重全流过滤，旁路设计
热能回收
单槽或双槽系统
可组合清洗方式：喷淋清洗、浸没/注入漫洗、超声波清洗
脉冲压力清洗（PPC）与超声增强清洗（US+）
工作舱前置装载，手动或自动操作
物料运动辅助清洗与干燥效果
轻质馏分与水分离持续进行
自动化排油功能缩短停机时间
PLC控制（西门子）实现工艺流程个性化编程
控制面板纯文本显示故障诊断
远程维护服务
可选水冷或风冷方案
优化安装尺寸，兼顾维护便利性
提供设计方案包
EcoCbase S | EcoCbase M – The Basic Solution
The EcoCbase series offers the ideal entry point into solvent cleaning – compact, economical, and suitable for smaller capacities.
The EcoCbase series stands for powerful and economical parts cleaning with non-halogenated hydrocarbons and modified alcohols. These cleaning media enable the reliable removal of oils, greases, emulsions, and chips efficiently and reliably.
The systems are used both between and after manufacturing processes and are ideal for small businesses with lower capacities as well as for decentralized cleaning stations in larger production environments.
The EcoCbase series is the ideal entry point into cost-efficient solvent cleaning – flexible, sustainable, and tailored to your requirements.
Benefits
Tried and tested entry-level solution:
Benefit from Ecoclean‘s many years of expertise – also with compact systems for smaller batches and limited production volumes.
Flexibly adaptable:
For a wide range of applications, from preliminary cleaning to intermediate cleaning and final cleaning.
Future-proof system concept:
Suitable for use with hydrocarbons and modified alcohols.
Small installation size:
Compact design allows installation even in rooms with low ceilings (EcoCbase S: > 2 m height, 1.4 m width).
Advanced features:
Options such as Pulsated Pressure Cleaning (PPC), Ultrasound Plus, and automatic oil discharge (with
EcoCbase S) ensure process reliability and efficiency.
Energy-efficient process design:
New heat recovery features help reduce energy consumption and operating costs.
System Technology & Process

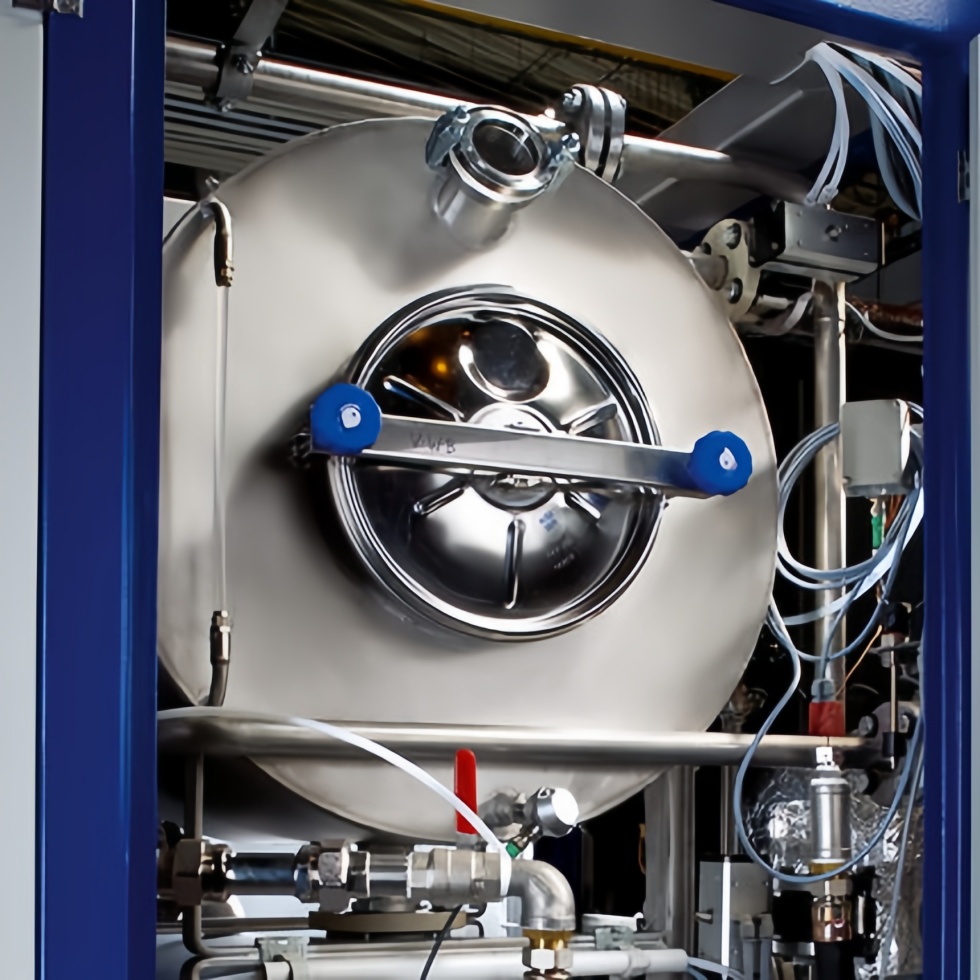

Single-chamber full vacuum cleaning system for cleaning components with hydrocarbons and modified alcohols
Vacuum process for cleaning, distillation, and drying; filling/emptying via built-in vacuum technology
Multiple monitoring of safety-related temperatures and pressures in the containers
Double full-flow filtration, bypass
Heat recovery
1-tank or 2-tank system
Combinable cleaning methods: spray cleaning, immersion/injection flood washing, ultrasonic cleaning
PPC (Pulsated Pressure Cleaning) and Ultrasound Plus (US+)
Front loading of the working chamber, manual or automatic
Movement of goods to support the cleaning and drying effect
Continuous separation of light distillates and water
Automated oil discharge to reduce downtime
PLC control (Siemens) for individual programming of process sequences
Error diagnosis via plain text display on the control panel
Maintenance with Remote Service
Optional water or air cooling possible
Optimized installation dimensions, taking into account maintenance-friendly aspects
Design packages available
