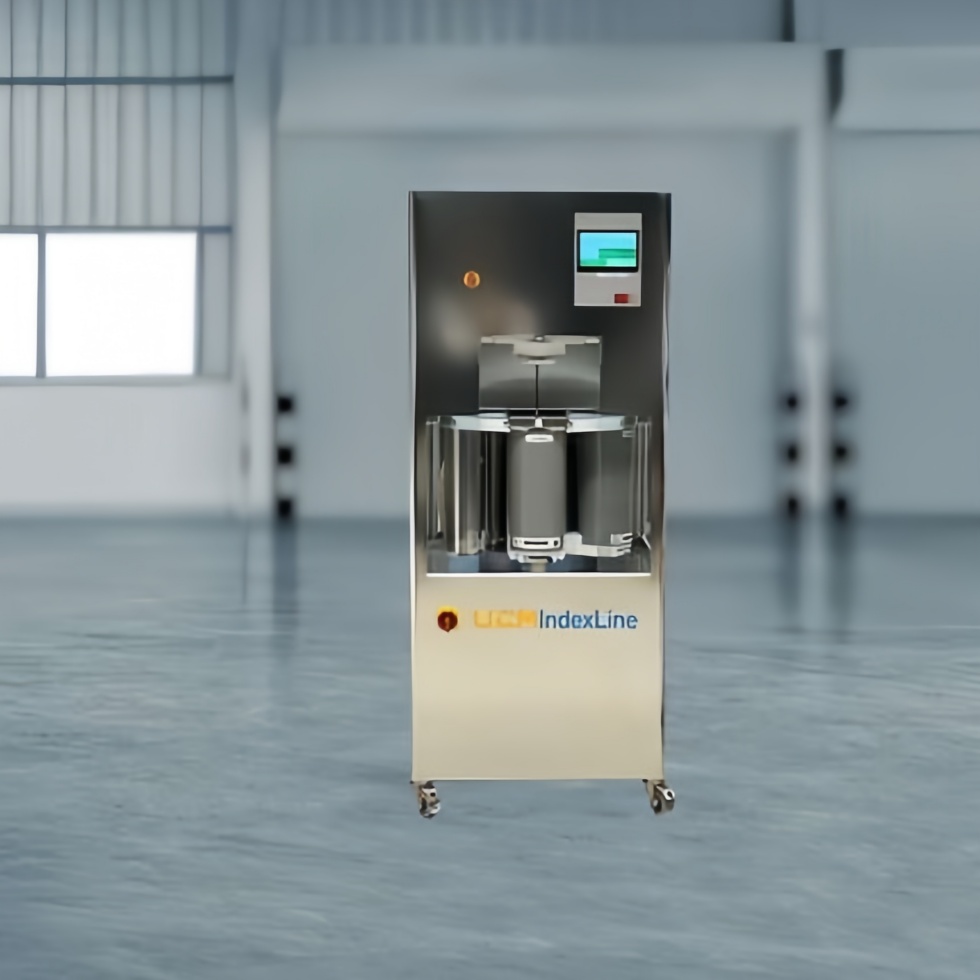

UCMIndexLine – 复杂小零件的精密清洗
紧凑型UCMIndexLine旋转定位系统结合了六个灵活的清洗和冲洗站（带超声波和不带超声波），实现完整的水性精密清洗工艺。该系统专为zui小和zui复杂的部件设计，支持任何工艺序列。
UCMIndexLine是一种非常紧凑的旋转分度系统，拥有六个清洗站，用于水基精密清洗。结合清洗和冲洗站，无论有无超声，几乎所有工艺都可以被映射。因此，任何工艺序列以及任意数量的工艺序列都可以被表示。该系统特别设计用于非常小且复杂的部件。
机器概念
专为清洁小型机械部件设计
具有可更换血管的超声技术
使用脉冲压力清洗（PPC）在真空下进行清洁
篮子以可编程速度旋转
温度和液位的自动控制
自由编程周期时间
zui多可存储1000个程序，zui多30个阶段
CU-4000控制
系统通过6.5英寸液晶触摸屏操作
极其紧凑的系统（<1平方米）
维护友好设计
提供统计、历史和质量控制流程注册（选项）
应用领域
医疗技术，例如种植牙、外科器械、医疗器械、牙科技术、3D打印、毛细管和钻孔清洁
薄膜涂层（PVC/CVD），例如用于工具、汽车零件和配件
精密光学，例如微光学、透镜、镜面、棱镜、遮罩
精密机械/精密零件，例如用于飞机、汽车零件、手表、珠宝
特点与优势
专为清洁小型机械部件设计：具有可更换容器的超声技术
真空清洗：脉冲压力清洗（PPC）作为选项
zui大工艺灵活性：zui多可存储1000个程序，zui多可存储30个阶段
自动化质量控制与文档管理：持续监测温度和液体液位，并可选进行过程记录，用于统计、历史和验证目的
紧凑、易于维护的设计：占地不足1平方米，维护区易于访问

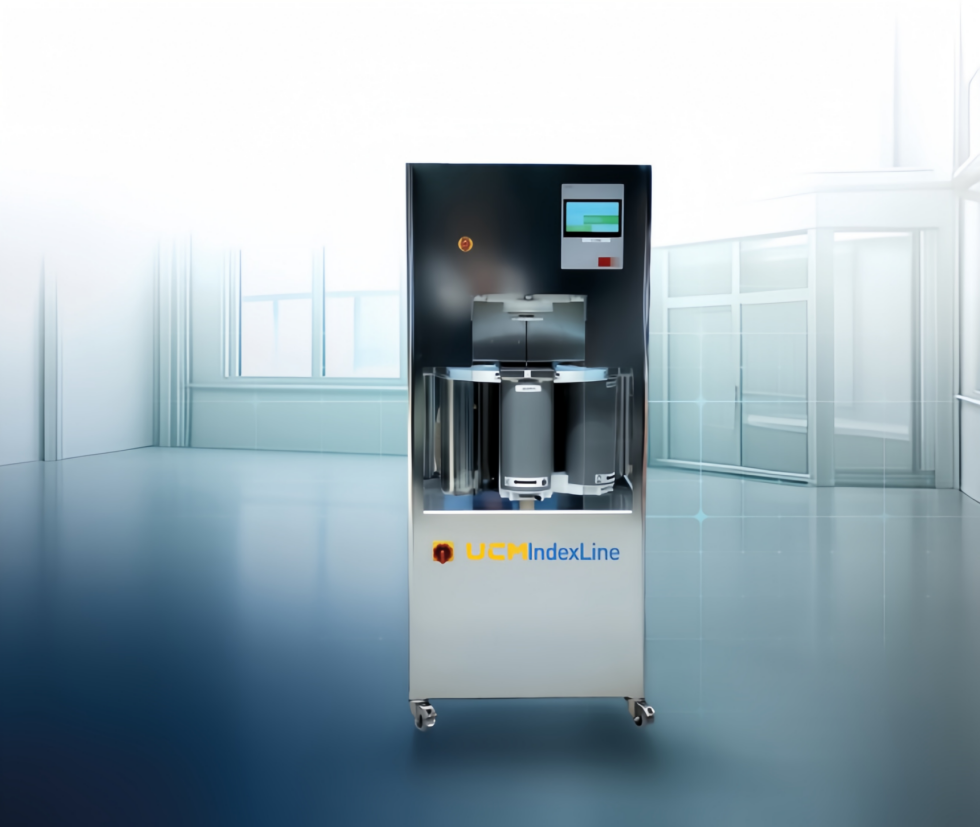

UCMIndexLine – Precision Cleaning for Complex Small Parts
The compact UCMIndexLine rotary indexing system combines six flexible cleaning and rinsing stations (with and without ultrasound) for complete aqueous precision
cleaning processes. It is specially designed for the smallest and complex components and allows any process sequence.
The UCMIndexLine is a very compact rotary indexing system with six cleaning stations for precision cleaning on an aqueous basis. With the integrated cleaning and rinsing
stations, with and without ultrasound, almost all processes can be mapped. Thus, any process sequence as well as any number of process sequences can be represented.
The system is especially designed for very small and complex components.
Machine concept
Designed for cleaning small mechanical parts

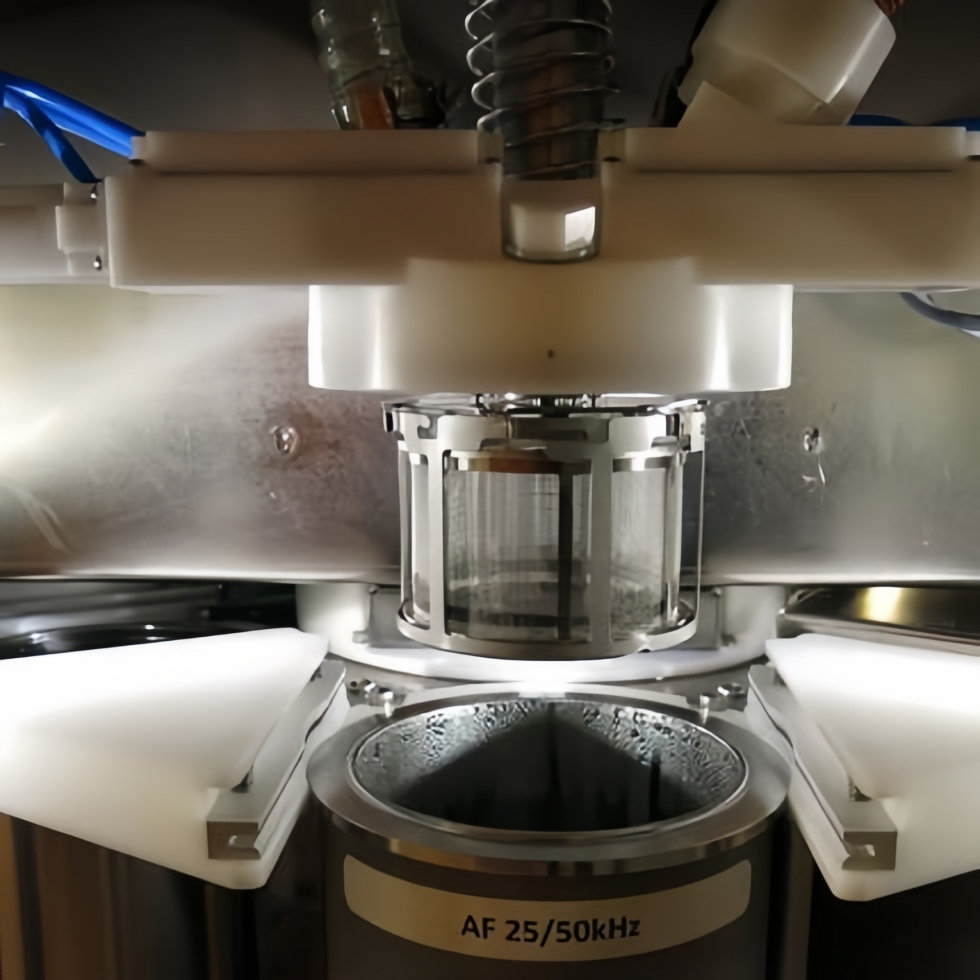

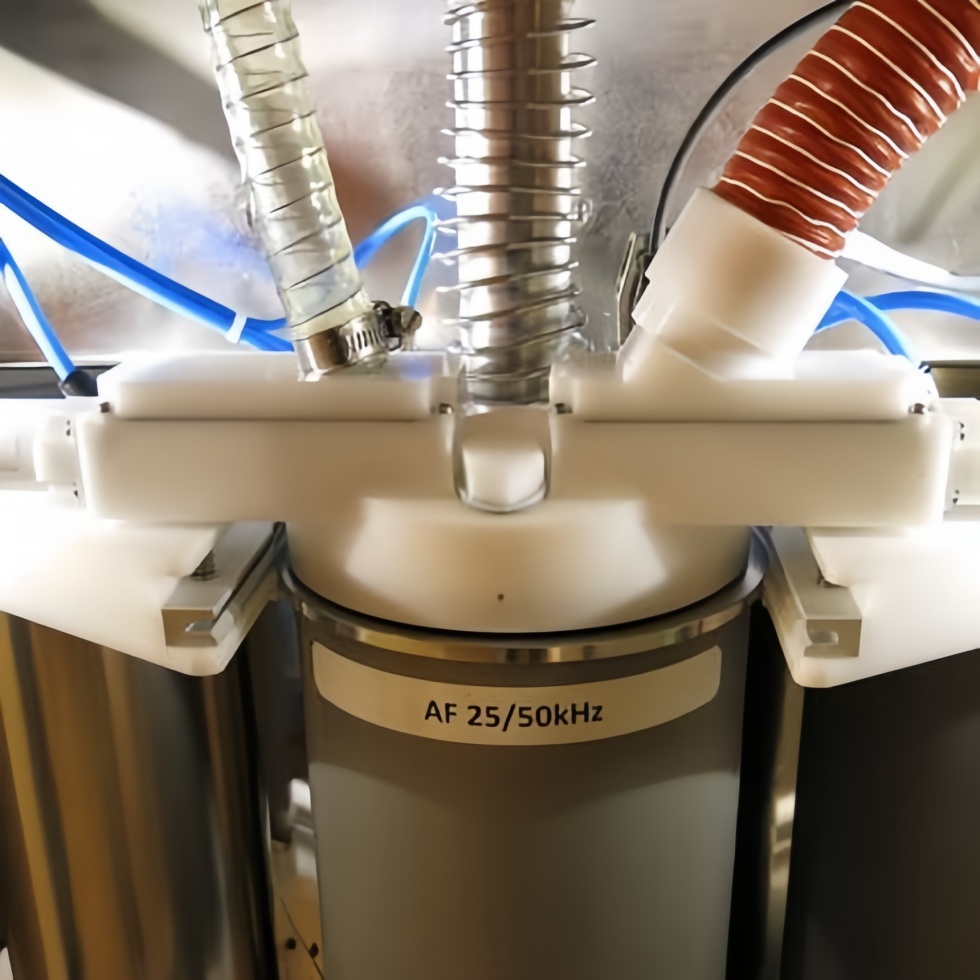

Ultrasound technology with interchangeable vessels
Cleaning under vacuum with Pulsated Pressure Cleaning (PPC)
Spinning of the basket with programmable speed
Automatic control of temperature and liquid level
Freely programmable cycle times
Up to 1,000 programs with up to 30 phases storable
CU-4000 control
System operation via 6,5“ LCD touch screen
Extremely compact system (< 1m²)
Maintenance friendly design
Process registration for statistics, history and quality control available (option)
Fields of application
Medical technology e.g. for implants, surgical tools, medical instruments, dental technology, 3D printing, cleaning of capillaries and boreholes
Thin film coating (PVC/CVD) e.g. for tools, automotive parts, fittings
Precision optics e.g. for micro optics, lenses, mirrors, prisms, masks
Precision mechanics / precision parts e.g. for aircraft, automotive parts, watches, jewelry
Features and benefits
Designed for cleaning small mechanical parts: Ultrasound technology with interchangeable vessels
Vacuum-based cleaning: Pulsated Pressure Cleaning (PPC) as an option
Maximum process flexibility: up to 1,000 programs with up to 30 phases storable
Automated quality control and documentation: continuous monitoring of temperature and liquid level, as well as optional process recording for statistics, history, and
verification purposes
Compact, maintenance-friendly design: less than 1 m² footprint, easily accessible maintenance areas
